R100R (2473) | Rear Axle & Suspension

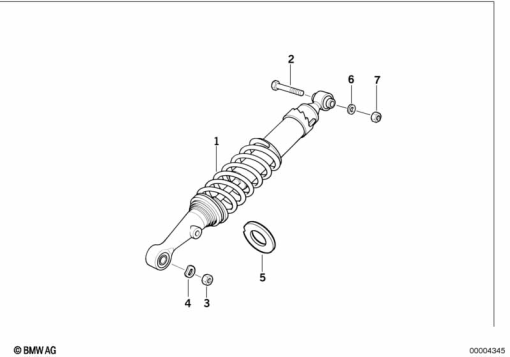

SPRING STRUT, REAR
Diagram #33_0664 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 2 312 459 | SPRING STRUT, REAR | 1 | |
| 1 | 33 53 2 314 972 | WASHER | 1 | |
| 2 | 07 11 9 915 603 | HEX BOLT - M10X55-8.8-ZNS | 1 | |
| 3 | 07 11 9 915 558 | HEX NUT - M10-8-ZNS | 1 | |
| 4 | 07 11 9 904 209 | WASHER - 10-200 ZNS3 | 1 | |
| 5 | 33 53 2 314 972 | WASHER | 1 | |
| 6 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 7 | 07 11 9 906 226 | HEX NUT - M10X1,25-ZNS3 | 1 |
