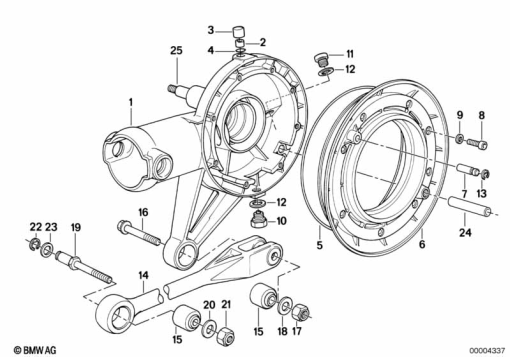

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 11 1 457 548 | HOUSING | - | |
| 2 | 23 11 1 451 548 | SLEEVE (to 12/96) | - | |
33 75 8 544 490 | SLEEVEAlternative for position 2 | - | ||
33 75 8 544 490 | SLEEVEAlternative for position 2 | - | ||
| 3 | 33 11 1 451 988 | 33 11 1 451 988 | - | |
| 4 | 33 11 1 454 606 | O-RING | - | |
| 5 | 33 11 1 241 257 | O-RING - 171,1X2,62 | - | |
| 6 | 33 11 1 457 935 | HOUSING COVER | - | |
| 7 | 33 11 1 241 620 | 0.11 | - | |
| 8 | 07 11 9 902 654 | FILLISTER-HEAD SCREW - M8X35 | - | |
| 9 | 07 11 9 931 684 | WASHER - 8,4 140HV | - | |
| 10 | 11 13 1 744 329 | SCREW PLUG, MAGNETIC - M14X1,5 | - | |
| 11 | 33 11 1 451 349 | SCREW PLUG - M14X1,5-ZNS | - | |
| 12 | 07 11 9 963 200 | GASKET RING - A14X18-AL | - | |
| 13 | 07 11 9 904 911 | CIRCLIP - 10-ZNS3 | - | |
| 14 | 33 17 2 310 160 | ROD, BLANK | - | |
| 15 | 33 17 1 458 495 | RUBBER MOUNTING | - | |
| 16 | 07 11 9 901 180 | HEX BOLT - M10X1.25X70-8.8 | - | |
| 17 | 07 12 9 964 677 | SELF-LOCKING HEX NUT - M10X1,25 | - | |
| 18 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 19 | 35 21 1 458 082 | BOLT | - | |
| 20 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 21 | 07 12 9 964 677 | SELF-LOCKING HEX NUT - M10X1,25 | - | |
| 22 | 07 11 9 902 398 | LOCK RING - 14X1 | - | |
| 23 | 07 11 9 932 642 | SHIM - 15X21X2 | - | |
| 24 | 33 11 1 452 568 | PROTECTION TUBE - D=15,8/L=94,5MM | - | |
| 25 | 33 11 1 458 149 | THREADED BOLT | - |
