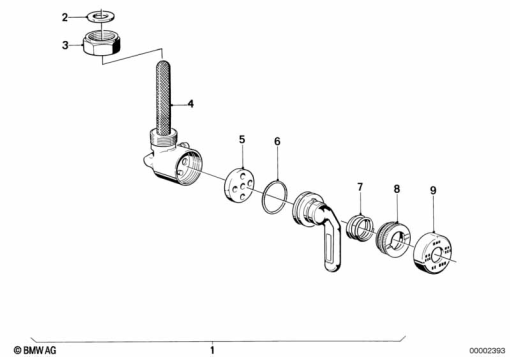

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 12 2 307 113 | FUEL TAP LEFT | - | |
16 12 2 307 114 | FUEL TAP RIGHTAlternative for position 1 | - | ||
| 2 | 16 12 1 240 060 | GASKET RING - A13.5X18 | - | |
| 3 | 16 12 1 233 363 | CAP NUT | - | |
| 4 | 16 12 2 307 112 | STRAINER | - | |
| 5 | 16 12 1 238 924 | GASKET | - | |
| 6 | 16 12 1 234 869 | O-RING - 18X1,8 | - | |
| 7 | 16 12 1 236 390 | COMPRESSION SPRING | - | |
| 8 | 16 12 1 237 910 | 0.01 | - | |
| 9 | 16 12 1 233 367 | 16 12 1 233 367 | 2 |
