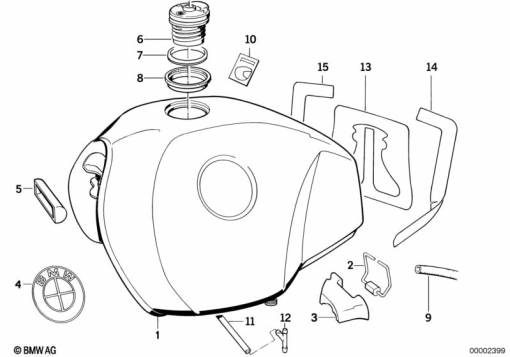

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 2 307 759 | FUEL TANK PRIME COATED - SHED | - | |
| 2 | 16 11 2 307 004 | RETAINER | - | |
| 3 | 16 11 2 307 014 | DISTANCE RUBBER | - | |
| 4 | 52 53 7 686 465 | BADGE - D=82MM | - | |
| 5 | 16 11 1 236 124 | DISTANCE RUBBER | - | |
| 6 | 51 25 2 307 125 | FILLER CAP | - | |
51 25 2 307 1251 | REPRO OG TYPE FUEL CAP KEYAlternative for position 6 | - | ||
51 25 2 307 1252 | REPRO OG SCREW IN FUEL CAP KEYAlternative for position 6 | - | ||
51 25 2 316 119 | FILLER CAP - CHROMEAlternative for position 6 | - | ||
51 25 2 307 125.M | FLIP LID GASCAPAlternative for position 6 | - | ||
| 7 | 51 25 1 453 148 | GASKET | - | |
| 8 | 16 11 2 307 360 | RING | - | |
| 9 | 16 13 2 307 010 | HOSE - 1330MM | - | |
| 10 | 51 14 1 453 617 | LABEL - HELM | - | |
| 11 | 13 11 1 338 115 | BULK MATERIAL, FUEL HOSE - 6X11 (meter) | - | |
| 13 | 51 14 2 307 099 | BASE | - | |
| 14 | 51 14 2 307 131 | FOIL LEFT | - | |
| 15 | 51 14 2 307 132 | FOIL RIGHT | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
