R100R (2473) | Front Suspension

RISER PIPE/ABSORBER

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

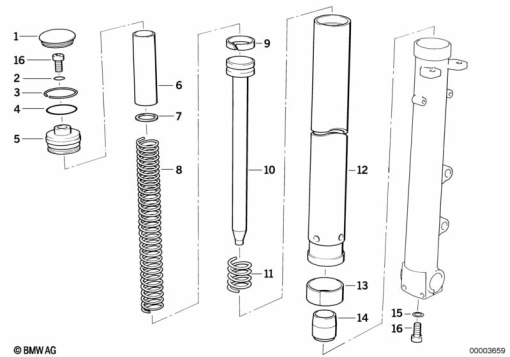

Diagram #31_0333 | 16 parts

100%

Parts List (16)

#	Part Number	Description	Qty
1	31 42 2 312 712	COVER CAP	-
2	31 42 2 312 714	O-RING	-
3	31 42 2 312 713	SNAP RING	-
4	31 42 2 312 833	O-RING	-
5	31 42 2 312 832	SPRING RETAINER	-
6	31 42 2 312 834	SPACER TUBE	-
7	31 42 2 312 835	SHIM	-
8	31 42 2 312 706	COMPRESSION SPRING	-
9	31 42 2 312 848	PISTON RING	-
10	31 42 2 312 707	PIPE	-
11	31 42 2 312 708	COMPRESSION SPRING	-
12	31 42 2 312 831	STANCHION	-
13	31 42 2 312 847	GUIDE BUSH	-
14	31 42 2 312 709	STOPPER	-
15	31 42 2 312 710	GASKET	-
16	31 42 2 312 711	FILLISTER-HEAD SCREW - M8X18-8.8-ZNS3	-
