R100R (2473) | Front Suspension

FORK SLIDER

Diagram #31_0332 | 16 parts

100%

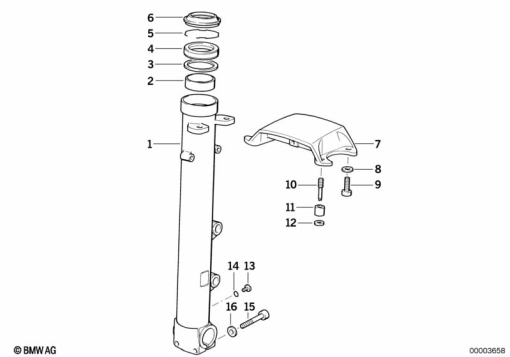

R100R (2473) FORK SLIDER exploded view parts diagram

Parts List (16)

#Part NumberDescriptionQty
1
31 42 2 312 295
SLIDER TUBE LEFT - D=41,0MM-
31 42 2 312 296
SLIDER TUBE RIGHT - D=41,0MMAlternative for position 1-
2
31 42 2 312 705
GUIDE BUSH-
3
31 42 2 312 839
SHIM-
4
31 42 2 312 838
GASKET RING-
5
31 42 2 312 837
SUPPORTING RING-
6
31 42 2 312 836
0.04-
7
31 42 2 312 299
STABILIZER-
31 42 2 316 091
STABILIZER - CHROMEAlternative for position 7-
10
31 42 2 314 030
GRUB SCREW-
11
46 62 1 450 473
BUSHING-
12
64 11 1 364 257
SPRING NUT-
13
31 42 2 312 842
SCREW PLUG - M6X6-
14
21 52 2 332 604
GASKET RING - 6,2X9,9-AL-
15
31 42 2 312 035
FILLISTER-HEAD SCREW - M8X40-8.8-SW-
16
07 11 9 931 684
WASHER - 8,4 140HV-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
