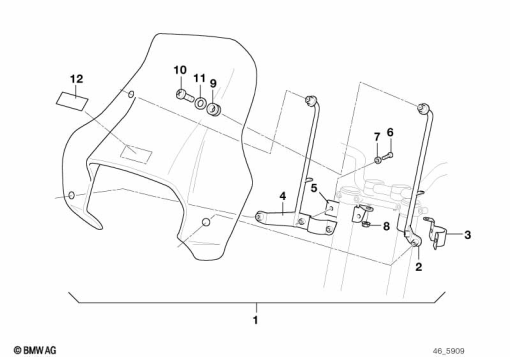

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 316 242 | SET: MOUNTING PARTS F WINDSHIELD - CHROME | - | |
46 63 2 316 265 | SET: MOUNTING PARTS F WINDSHIELD - BLACKAlternative for position 1 | - | ||
46 63 2 303 245 | WINDSHIELDAlternative for position 1 | - | ||
| 2 | 46 63 2 316 243 | BRACKET LEFT - CHROME | - | |
46 63 2 316 263 | BRACKET LEFT - BLACKAlternative for position 2 | - | ||
| 3 | 46 63 2 316 245 | PIPE CLAMP LEFT - CHROME | - | |
46 63 2 316 267 | PIPE CLAMP LEFT - BLACKAlternative for position 3 | - | ||
| 4 | 46 63 2 316 244 | BRACKET RIGHT - CHROME | - | |
46 63 2 316 264 | BRACKET RIGHT - BLACKAlternative for position 4 | - | ||
| 5 | 46 63 2 316 246 | PIPE CLAMP RIGHT - CHROME | - | |
46 63 2 316 268 | PIPE CLAMP RIGHT - BLACKAlternative for position 5 | - | ||
| 6 | 07 11 9 919 801 | FILLISTER-HEAD SCREW - M6X16 | - | |
46 63 2 316 274 | FILLISTER-HEAD SCREW - M6X16 CRAlternative for position 6 | - | ||
| 7 | 46 63 2 316 275 | WASHER - 6,4 CR | - | |
46 63 2 316 418 | WASHER - 6,4 SWAlternative for position 7 | - | ||
| 8 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 9 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 10 | 46 63 2 316 273 | FILLISTER HEAD SCREW - M6X16 CR | - | |
46 63 2 316 415 | FILLISTER HEAD SCREW - M6X16 SWAlternative for position 10 | - | ||
| 11 | 07 11 9 904 427 | WASHER - 6-200 | - | |
46 63 2 316 272 | WASHER - 6,4 CRAlternative for position 11 | - | ||
| 12 | 46 63 1 453 085 | LABEL RIGHT | - |
