Parts List (12)

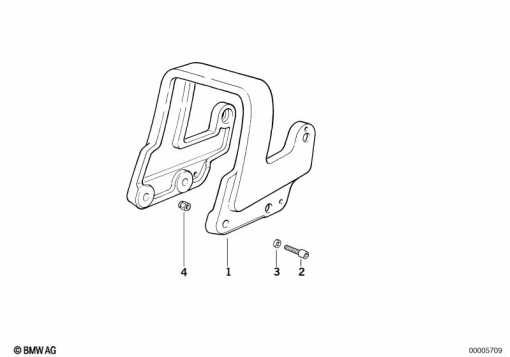

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 2 312 447 | HANDLE REAR - SILVER | - | |
46 51 2 314 482 | HANDLE REAR - BLACKAlternative for position 1 | - | ||
46 51 2 316 121 | HANDLE REAR - CHROMEAlternative for position 1 | - | ||
| 2 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| 3 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 3 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 3 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 3 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 3 | - | ||
| 4 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 12 9 905 817 | HEX NUTAlternative for position 4 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 4 | - |
