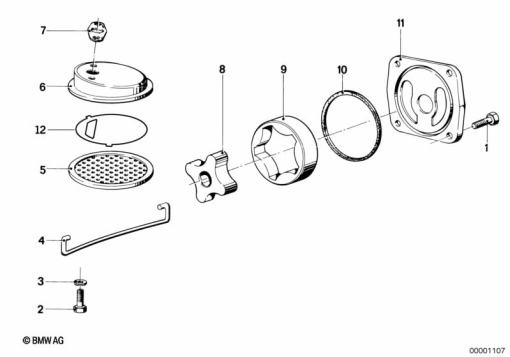

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 904 357 | HEX BOLT - M6X16-8.8-ZNS3 | - | |
07 11 9 913 464 | hex bolt 6 x 1.0 x 16Alternative for position 1 | - | ||
| 2 | 07 12 9 903 809 | ISA SCREW - M6X40 | - | |
| 3 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 3 | - | ||
| 4 | 11 41 1 252 226 | WIRE-STRAP | - | |
| - | 07 11 9 932 0701 | SS 6MM WASHER | - | |
| - | 07 11 9 932 073 | BLACK SPRING WASHER | - | |
| 5 | 11 41 1 337 509 | PERFORATED PLATE | - | |
| 6 | 11 41 1 338 632 | OIL PUMP STRAINER | - | |
| 7 | 11 41 1 265 258 | GASKET | - | |
| 8 | 11 41 1 335 194 | ROTOR INNER | - | |
| 9 | 11 41 1 253 293 | ROTOR,OUTER | - | |
| 10 | 11 41 1 335 895 | O-RING - 62X2 | - | |
| 11 | 11 41 1 338 544 | OIL PUMP COVER | - | |
| 12 | 11 41 1 338 634 | COVERING PLATE | - |
