R100R (2473) | Engine

OIL FILTER, DIPSTICK

Diagram #11_1703 | 4 parts

100%

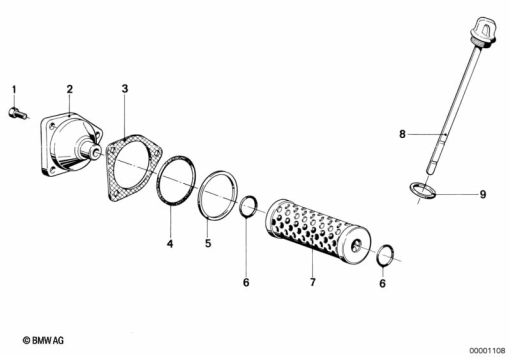

R100R (2473) OIL FILTER, DIPSTICK exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
7
11 42 1 337 575
OIL FILTER OIL COOLER1
–
11 44 1 338 654
OIL COOLER1
8
11 43 1 338 635
DIPSTICK1
9
11 43 1 337 308
O-RING - 25X21
