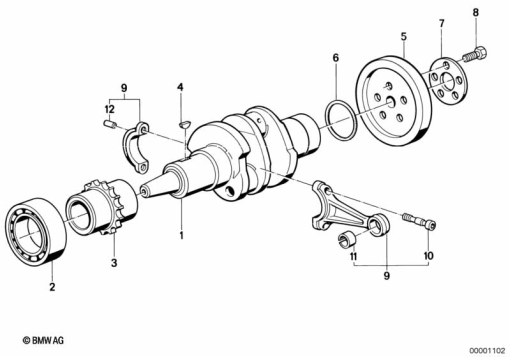

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 1 338 171 | CRANKSHAFT - M11X1,5 | - | |
| 2 | 07 11 9 981 722 | GROOVED BALL BEARING - 16007 C3 | - | |
| - | Ball bearing 16007 C3. | Ball bearing 16007 C3. | - | |
| 3 | 11 21 1 335 586 | SPROCKET | - | |
| 4 | 07 11 9 951 480 | WOODRUFF KEY - 5X6.5 | - | |
| 5 | 11 22 1 337 284 | GUIDE RING | - | |
| 6 | 11 22 1 337 093 | O-RING - 59X3 | - | |
| 7 | 11 22 1 335 366 | WASHER | - | |
| 8 | 11 22 1 262 060 | HEX BOLT - M11X1.5 | - | |
| 9 | 11 24 1 338 152 | CONNECTING ROD - 1XYELLOW | - | |
11 24 1 338 153 | CONNECTING ROD - 1XWHITEAlternative for position 9 | - | ||
| 10 | 11 24 1 337 553 | CONNECTING ROD BOLT | - | |
| 11 | 11 24 0 618 100 | CONNECTING ROD BUSH | - | |
| 12 | 11 24 1 254 819 | DOWEL PIN | - |
