R100R (2473) | Engine
COVER PANEL / ENGINE VENTILATION

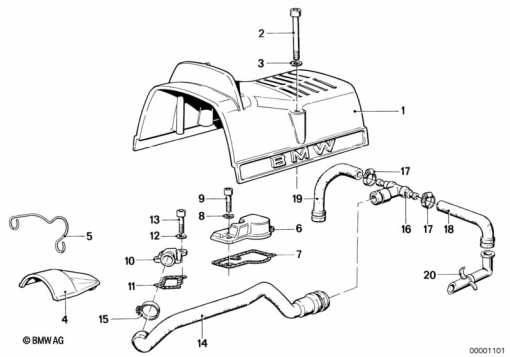

Diagram #11_1694 | 21 parts | 2 available in shop
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 1 337 481 | COVER - "SLS" | 1 | |
| 2 | 07 12 9 905 539 | ISA SCREW - M6X50-8.8-ZNNIV | 1 | |
| 3 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 3 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 3 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 3 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 6 | 11 15 1 265 183 | COVER | 1 | |
| 7 | 11 15 1 338 430 | GASKET | 1 | |
| 8 | 07 11 9 932 098 | WAVE WASHER - B5 | 1 | |
| 9 | 07 11 9 920 057 | FILLISTER-HEAD SCREW - M5X20-8.8 ZNS | 1 | |
| 10 | 11 15 1 265 261 | COVER | 1 | |
| 11 | 11 15 1 338 432 | GASKET | 1 | |
| 12 | 07 11 9 932 098 | WAVE WASHER - B5 | 1 | |
| 13 | 07 11 9 920 057 | FILLISTER-HEAD SCREW - M5X20-8.8 ZNS | 1 | |
| 14 | 11 15 1 337 258 | VENT HOSE | 1 | |
| 15 | 11 15 1 460 935 | HOSE CLAMP - D=19MM | 1 | |
| 16 | 13 72 1 337 108 | DISTRIBUTION PIECE | 1 | |
| 17 | 13 72 1 337 342 | HOSE CLAMP - SLS | 1 | |
| 18 | 13 72 1 337 511 | VENT HOSE, LEFT | 1 | |
| 19 | 13 72 1 337 512 | VENT HOSE, RIGHT | 1 | |
| 20 | 13 72 1 337 492 | EXTENSION | 1 |
