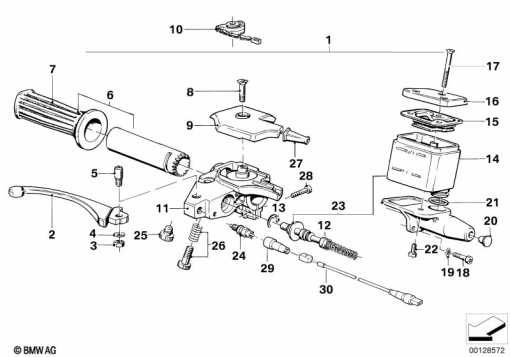

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 2 310 746 | HANDLE UNIT, RIGHT - D=13MM | 1 | |
| 2 | 32 72 1 242 555 | HANDLEVER BLACK RIGHT | 1 | |
| 3 | 32 72 8 532 969 | NUT, SELF-LOCKING - M6 (from 09/80) | 1 | |
| 4 | 32 72 1 230 871 | WAVE WASHER (from 09/80) | 1 | |
| 5 | 32 72 1 238 380 | SCREW (from 09/80) | 1 | |
| 6 | 32 72 1 454 129 | HANDLE (from 09/80) | 1 | |
| 7 | 32 72 1 237 812 | RUBBER GRIP SQUARE RIGHT (from 09/80) | 1 | |
| 8 | 32 72 1 454 245 | COUNTERSUNK SCREW - M5X15-ZN-SW (from 09/80) | 1 | |
| 9 | 32 72 1 457 039 | COVER | 1 | |
| 10 | 32 72 1 457 038 | CAM DISC - 33MM | 1 | |
| 11 | 32 72 1 454 461 | HOUSING | 1 | |
| 12 | 32 72 2 302 356 | PISTON - D=13MM | 1 | |
| 13 | 07 11 9 934 620 | LOCK RING - 17X1 (from 09/80) | 1 | |
| 14 | 32 72 1 242 623 | EXPANSION TANK (from 09/80) | 1 | |
| 15 | 32 72 1 242 547 | RUBBER BOOT (from 09/80) | 1 | |
| 16 | 32 72 1 454 945 | COVER (from 09/80) | 1 | |
| 17 | 07 11 9 928 129 | COUNTERSUNK SCREW BLACK - M5X55-4.8-ZN SW | 1 | |
| 18 | 32 72 1 451 987 | FILLISTER-HEAD SCREW - M5X20-Z4-8.8-SW (from 09/80) | 1 | |
| 19 | 07 11 9 933 060 | SPRING WASHER - B5 (from 09/80) | 1 | |
| 20 | 32 72 1 242 552 | PLUG (from 09/80) | 1 | |
| 21 | 32 72 1 242 624 | O-RING (from 09/80) | 1 | |
| 22 | 32 72 1 242 625 | OVAL-HEAD SCREW - 4X12-WN1412-H (from 09/80) | 1 | |
| 23 | 32 72 2 310 784 | SET: CYLINDER WITH PISTON - D=13MM | 1 | |
| 24 | 61 31 1 459 569 | SWITCH | 1 | |
| 25 | 32 72 1 236 605 | PLUG (from 09/80) | 1 | |
| 26 | 32 72 1 230 874 | LOCKING BOLT (from 09/80) | 1 | |
| 27 | 32 73 1 230 037 | 0.25 | 1 |
