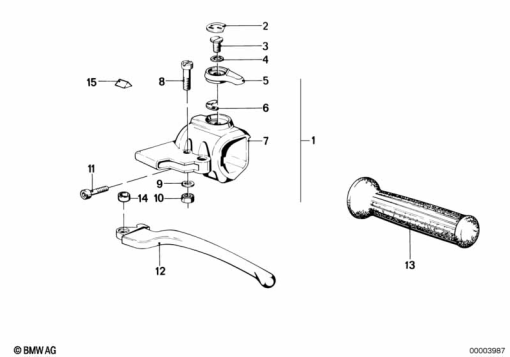

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 1 241 862 | HANDLE UNIT LEFT | - | |
| 2 | 32 72 1 451 975 | 32 72 1 451 975 | - | |
| 3 | 07 11 9 907 430 | SAUCER-HEAD SCREW - M6X12 | - | |
| 4 | 32 72 1 240 791 | WASHER - 1,200MM | - | |
| 5 | 32 72 1 240 792 | LEVER FOR CHOKE | - | |
| 6 | 32 72 1 240 790 | PLATE | - | |
| 7 | 32 72 1 240 796 | HOUSING | - | |
| 8 | 32 72 1 230 870 | SCREW | - | |
| 9 | 32 72 1 230 871 | WAVE WASHER | - | |
| 10 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/95) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUTAlternative for position 10 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 10 | - | ||
| 12 | 32 72 1 234 848 | HAND LEVER LEFT | - | |
| 13 | 32 72 1 237 811 | RUBBER GRIP LEFT SQUARE | - | |
| 14 | 32 72 1 232 662 | BUSH | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
