Parts List (33)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 62 21 1 456 571 | HOUSING HALF FRONT - ALPINWHITE | - | |
62 21 1 456 312 | HOUSING HALF FRONT - MARRAKESCH/ROTAlternative for position 2 | - | ||
| - | 46 63 2 303 924 | DRILLING TEMPLATE | - | |
| 3 | 62 21 1 244 041 | HOUSING HALF REAR | - | |
62 21 1 456 314 | HOUSING HALF REAR - MARRAKESCH/ROTAlternative for position 3 | - | ||
62 21 1 456 569 | HOUSING HALF REAR - ALPINWHITEAlternative for position 3 | - | ||
| 4 | 62 21 1 244 755 | COVER | - | |
| 5 | 62 14 1 244 756 | TELL-TALE | - | |
| 6 | 62 13 7 728 087 | BULB SOCKET | - | |
| 7 | 62 14 1 244 727 | BULB | - | |
| 9 | 62 21 1 244 541 | BRACKET LOWER | - | |
| 10 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | - | |
07 11 9 913 016.1 | STAINLESS 6 X 20 BOLTAlternative for position 10 | - | ||
| 11 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| - | 6221541 | BRACKET SET LOWER | - | |
| 12 | 62 21 1 244 064 | RUBBER GROMMET | - | |
| 13 | 62 21 1 244 068 | BUSH | - | |
| 14 | 62 21 1 244 072 | WASHER | - | |
| 15 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 15 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 15 | - | ||
| 16 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 17 | 07 11 9 905 524 | HEX BOLT - M6X12-8.8-ZNNIV | - | |
| - | 07 11 9 932 0701 | SS 6MM WASHER | - | |
| - | 07 11 9 932 073 | BLACK SPRING WASHER | - | |
| 18 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 18 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 18 | - | ||
| 19 | 62 21 1 459 938 | COUNTERSUNK HEAD SCREW - M4X50 | - | |
| 20 | 62 21 1 459 939 | COUNTERSUNK HEAD SCREW - M4X25 | - | |
| - | 07 11 9 932 0701 | SS 6MM WASHER | - | |
| - | 07 11 9 932 073 | BLACK SPRING WASHER | - | |
| 21 | 46 63 1 244 594 | 0.03 | - |

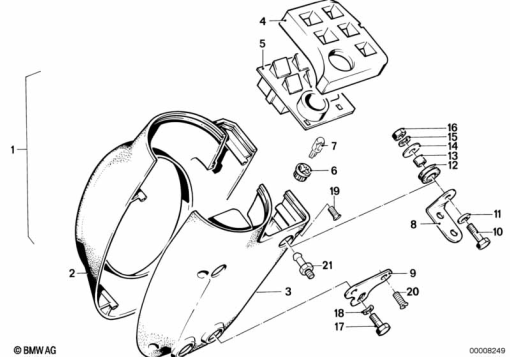

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
