R100GS (47E1) | Instruments Dash

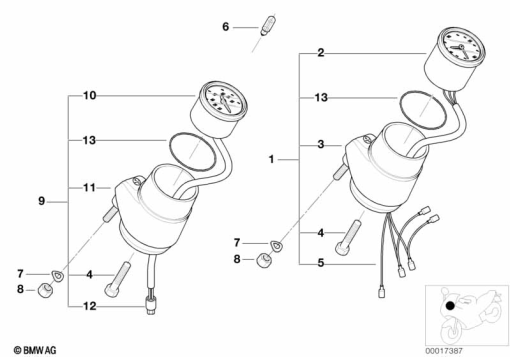

ADDITIONAL INSTRUMENTS/SINGLE PARTS
Diagram #62_0215 | 18 parts | 2 available in shop
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 13 1 244 654 | INSTALLING SET CLOCK | 1 | |
| 2 | 62 13 1 244 638 | CLOCK | 1 | |
| 1 | 62 13 1 243 100 | GASKET RING | 1 | |
| 3 | 62 13 1 243 642 | HOLDER - BLACK | 1 | |
| 4 | 62 13 1 243 098 | SCREW | 1 | |
| 5 | 61 12 1 244 162 | WIRING CLOCK | 1 | |
| 6 | 07 11 9 978 279 | BULB - 12V 2W | 1 | |
| 7 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 7 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 7 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 7 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 7 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 | 1 | |
| 8 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | 1 | |
| 9 | 62 13 1 244 656 | RETROFIT KIT, REVOLUTION COUNTER | 1 | |
| 10 | 62 13 1 244 648 | REVOLUTION COUNTER | 1 | |
| 1 | 62 13 1 243 100 | GASKET RING | 1 | |
| 11 | 62 13 1 357 868 | HOLDER - BLACK | 1 | |
| 12 | 61 12 1 244 163 | WIRING REV. COUNTER | 1 |
