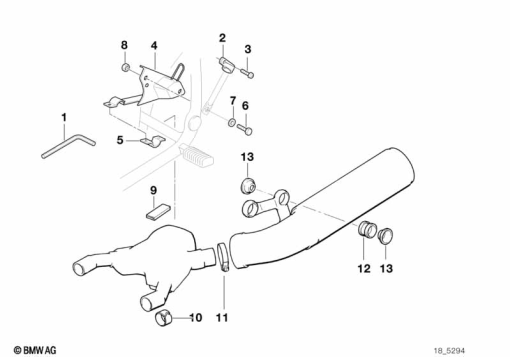

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 316 546 | INNER HEX SPANNER - 6 | - | |
| 2 | 46 63 2 316 344 | CLAMP | - | |
| 3 | 07 11 9 907 627 | FILLISTER HEAD SCREW - M5X12-ZN | - | |
| 4 | 46 51 2 316 345 | PLATE | - | |
| 5 | 46 51 2 316 346 | CLAMP | - | |
| 6 | 07 11 9 905 524 | HEX BOLT - M6X12-8.8-ZNNIV | - | |
| 7 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 8 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 9 | 18 21 1 457 940 | 0.01 | - | |
| 10 | 18 21 2 331 956 | GASKET | - | |
| 11 | 18 21 1 454 381 | MUFFLER CLAMP - LEFT D=49 | - | |
| 12 | 18 21 1 461 922 | GROMMET | - | |
| 13 | 18 21 1 461 923 | WASHER | - |
