R100GS (47E1) | Engine Electrics

STARTER SINGLE PARTS / D6RA7

Diagram #12_0762 | 10 parts | 1 available in shop

100%

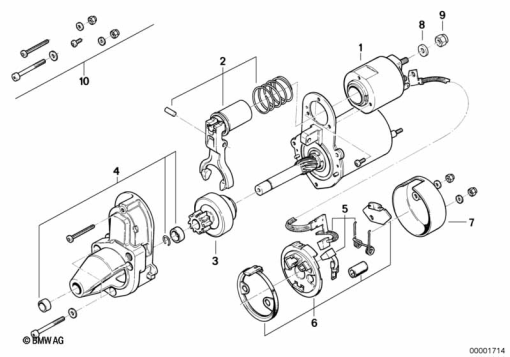

R100GS (47E1) STARTER SINGLE PARTS / D6RA7 exploded view parts diagram

Parts List (10)

#Part NumberDescriptionQty
1
12 41 1 244 607
SOLENOID SWITCH (09/87 to 09/89)1
2
12 41 1 244 609
CLUTCH REL.FORK LEVER (09/87 to 09/89)1
3
12 41 1 244 682
STARTER PINION (09/87 to 09/89)1
4
12 41 1 244 611
SET: REPAIR KIT FOR STARTER (09/87 to 09/89)1
5
61 31 2 306 015
SET: CARBON BRUSH SET (09/87 to 09/89)1
6
12 41 1 244 616
SET: BRUSH HOLDER PLATE (09/87 to 09/89)1
7
12 41 1 244 614
CAP (09/87 to 09/89)1
8
12 41 1 244 623
SPRING WASHER (09/87 to 09/89)1
9
12 41 1 244 622
HEX NUT - M8-8 CU (09/87 to 09/89)1
10
12 41 1 244 613
SET: REPAIR KIT SCREWS (09/87 to 09/89)1
