R100GS (47E1) | Engine Electrics
STARTER SINGLE PARTS / D6RA15

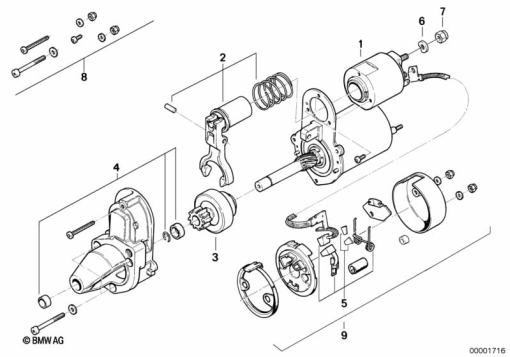

Diagram #12_0764 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 41 1 244 607 | SOLENOID SWITCH (from 09/89) | 1 | |
| 2 | 12 41 1 244 609 | CLUTCH REL.FORK LEVER (from 09/89) | 1 | |
| 3 | 12 41 1 244 682 | STARTER PINION (from 09/89) | 1 | |
| 4 | 12 41 1 244 611 | SET: REPAIR KIT FOR STARTER (from 09/89) | 1 | |
| 5 | 12 41 1 244 684 | SET: CARBON BRUSH SET (from 09/89) | 1 | |
| 6 | 12 41 1 244 623 | SPRING WASHER (from 09/89) | 1 | |
| 7 | 12 41 1 244 622 | HEX NUT - M8-8 CU (from 09/89) | 1 | |
| 8 | 12 41 1 244 613 | SET: REPAIR KIT SCREWS (from 09/89) | 1 |
