R100GS (47E1) | Engine Electrics

ALTERNATOR REGULATOR, DIODE ASSY

Diagram #12_0745 | 13 parts

100%

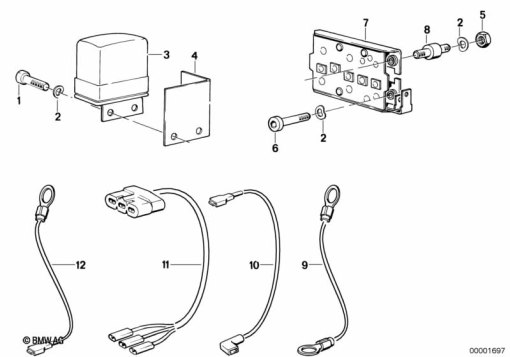

R100GS (47E1) ALTERNATOR REGULATOR, DIODE ASSY exploded view parts diagram

Parts List (13)

#Part NumberDescriptionQty
1
07 11 9 906 431
FILLISTER HEAD SCREW - M5X12-ZN-
2
07 11 9 932 098
WAVE WASHER - B5-
3
12 32 1 244 409
VOLTAGE REGULATOR-
12 32 1 244 737
VOLTAGE REGULATORAlternative for position 3-
5
07 11 9 905 729
HEX NUT - M5-8-ZNNIV SI-
7
12 31 1 244 063
DIODE ASSY-
8
12 31 1 358 131
RUBBER MOUNTING-
9
12 31 1 358 130
GROUND CABLE-
10
12 33 1 357 639
WIRING SET-
-
12 31 1 244 062R
OMEGA DIODE BOARD-
11
12 32 1 243 178
WIRING SET-
12
61 12 1 243 224
WIRE CHARGING CURRENT-
-
ELA43178
Diode Board Wire Set-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
