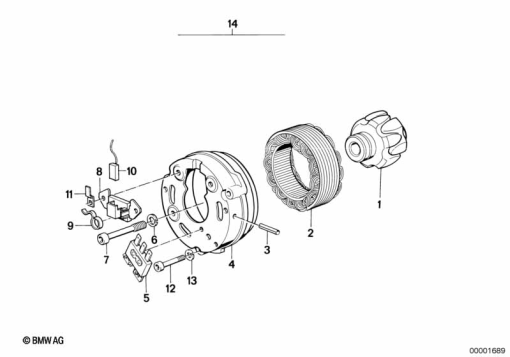

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 31 1 244 642 | ROTOR - 17A | - | |
12 31 1 244 642R | REPLACEMENT 85 MM ROTORAlternative for position 1 | - | ||
1231641 | ALT. ROTORAlternative for position 1 | - | ||
| 2 | 12 31 1 244 641 | STATOR ASSY - 17A | - | |
12 31 1 244 641R | REPLACEMENT 107MM STATORAlternative for position 2 | - | ||
| 3 | 12 31 1 350 769 | ROLL PIN | - | |
| 4 | 12 31 1 243 002 | HOUSING | - | |
| 5 | 12 31 8 002 349 | CONNECTOR | - | |
| 7 | 12 31 8 002 348 | FILLISTER-HEAD SCREW | - | |
| 8 | 12 31 1 243 003 | BRUSH HOLDER PLATE | - | |
| 9 | 12 31 1 350 786 | COMPRESSION SPRING | - | |
| 10 | 12 31 1 244 480 | SET: CARBON BRUSH SET | - | |
12 31 1 244 4801 | BRUSHES FOR REPLACEMENTAlternative for position 10 | - | ||
12 31 1 244 389 | SET: KIT CARBON BRUSHESAlternative for position 10 | - | ||
| 11 | 12 31 8 002 351 | CABLE TERMINAL - D=5,3 | - | |
| 12 | 12 31 2 322 417 | FILLISTER-HEAD SCREW - M5X45-8.8 ZNS | - | |
| 13 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 14 | 12 31 1 243 288R | ALTERNATOR 400W OMEG | - | |
12 31 1 244 637 | ALTERNATOR - 12V17AAlternative for position 14 | - | ||
12 31 1 244 637OM | OMEGA 600W ALTERNATORAlternative for position 14 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
