R100GS (47E1) | Electrical System

WIRING HARNESS/CHASSIS/ENGINE/TAIL LIGHT

Diagram #61_0192 | 3 parts

100%

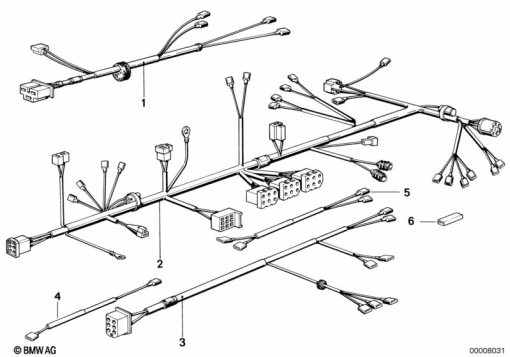

R100GS (47E1) WIRING HARNESS/CHASSIS/ENGINE/TAIL LIGHT exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
61 11 1 243 646
ENGINE WIRING HARNESS1
2
61 11 1 244 566
WIRING HARNESS SECTOR CHASSIS1
3
61 12 1 244 564
WIRING HARNESS TAIL LIGHT1
