Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 12 1 243 224 | WIRE CHARGING CURRENT | - | |
| 2 | 61 12 1 244 577 | BATTERY CABLE NEGATIVE | - | |
| 4 | 61 12 1 244 176 | WIRE IGNITION COIL | - | |
| 5 | 61 12 1 243 523 | WIRING TRANSMISSION-SWITCH | - | |
| 6 | 61 12 1 243 473 | BATTERY CABLE (PLUS POLE) | - | |
| 7 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 8 | 12 41 1 255 797 | HEX NUT - M8 | - |

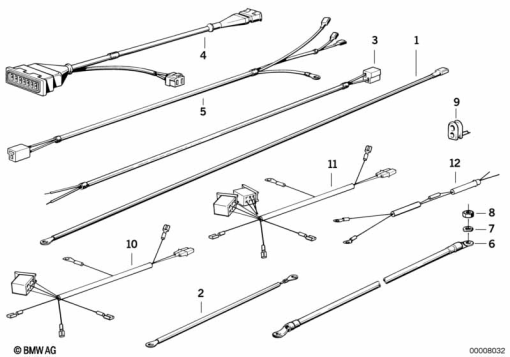

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
