R100GS (47E1) | Electrical System
HORN / VARIOUS RELAYS AND SWITCHES

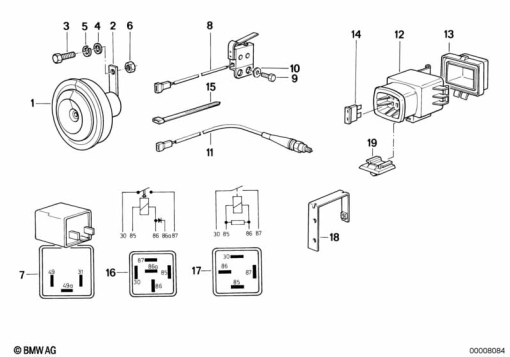

Diagram #61_0251 | 24 parts | 1 available in shop
100%
Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 33 2 306 791 | HORN - 335HZ | 1 | |
| 2 | 61 33 2 306 792 | SHACKLE | 1 | |
| 3 | 07 11 9 902 900 | HEX BOLT - M8X16-8.8-ZNS3 | 1 | |
| 4 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 5 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 6 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 07/90) | 1 | |
| 6 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | 1 | |
| 7 | 61 31 1 244 392 | HAZARD WARNING RELAY | 1 | |
| 8 | 61 31 1 459 747 | BRAKE LIGHT SWITCH FOOT BRAKE | 1 | |
| 9 | 07 11 9 906 431 | FILLISTER HEAD SCREW - M5X12-ZN | 1 | |
| 10 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | 1 | |
| 10 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 11 | 61 31 1 459 569 | SWITCH | 1 | |
| 12 | 61 13 1 382 196 | FUSE CARRIER | 1 | |
| 13 | 61 13 1 382 197 | COVER FOR FUSE HOLDER | 1 | |
| 14 | 61 13 1 372 524 | FUSE BROWN - 7,5A | 1 | |
| 14 | 61 13 1 372 526 | FUSE BLUE - 15A | 1 | |
| 15 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 15 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | 1 | |
| 16 | 61 36 1 389 105 | RELAY IN ZINC YELLOW | 1 | |
| 17 | 61 31 1 373 585 | RELAY - YELLOW | 1 | |
| 17 | 61 31 1 373 588 | MINI-RELAY | 1 | |
| 18 | 61 31 1 244 086 | HOLDER | 1 | |
| 19 | 61 13 1 378 964 | BRACKET, PLUG CONNECTION BLACK | 1 |
