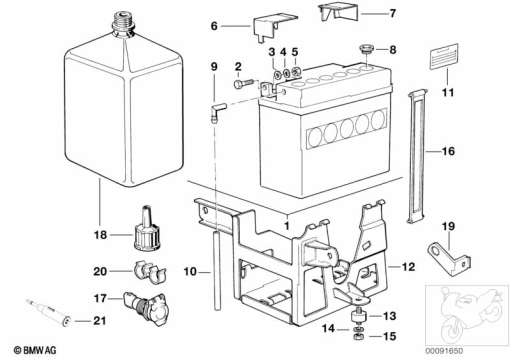

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53030 | YUASA BATTERY | - | |
61 21 1 459 650 | EMPTY BATTERY - 12V 25AHAlternative for position 1 | - | ||
| 2 | 61 21 1 459 655 | HEX BOLT - M6X20 | - | |
| 3 | 61 21 1 459 657 | WASHER - A6,4 | - | |
| 4 | 61 21 7 670 327 | SPRING WASHER - B6 | - | |
| 5 | 61 21 1 459 656 | HEX NUT - M6 | - | |
| 7 | 61 21 1 459 099 | COVERING CAP - + POL | - | |
| 8 | 61 21 1 459 106 | BLIND PLUG | - | |
| 9 | 61 21 1 459 743 | HOSE CONNECTOR | - | |
| 11 | 51 14 1 873 247 | LABEL "BATTERY" | - | |
| 12 | 61 21 1 244 546 | BATTERY HOLD DOWN (from 11/87) | - | |
| 13 | 61 21 1 233 028 | RUBBER MOUNTING | - | |
FRA33028 | RUB. MNT. BAT BOX 8-15-8MMAlternative for position 13 | - | ||
| 14 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 15 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 16 | 61 21 1 243 562 | TENSION STRAP | - | |
| 18 | 61 21 9 056 972 | BATTERY ACID PARCEL (6 BOTTLES) - 25AH-30AH | - | |
| 20 | 61 21 1 244 557 | HOSE CLAMP | - | |
| 21 | 61 13 8 060 106 | PLUG HOUSING | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
