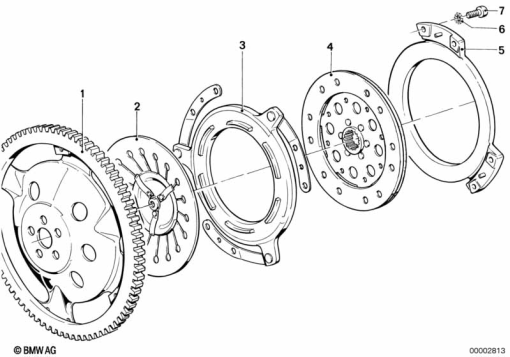

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 1 338 722 | CLUTCH HOUSING | - | |
| 6 | 21 21 1 338 680 | FILLISTER-HEAD SCREW - M7X18-8.8 | - | |
| - | 21 21 1 338 508 | DIAPHRAGM SPRING | - | |
| - | 21 21 2 302 200 | PLATE | - | |
| - | 21 21 1 451 512 | CLUTCH PLATE | - | |
| - | 21 21 1 451 512.S | CLUTCH PLT 5.5MM SINTERED REIN | - | |
| - | 21 21 1 457 280 | HOUSING COVER | - | |
| 6 | 21 21 1 242 377 | WASHER - A7,4 | - | |
| 7 | 21 21 1 338 680 | FILLISTER-HEAD SCREW - M7X18-8.8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
