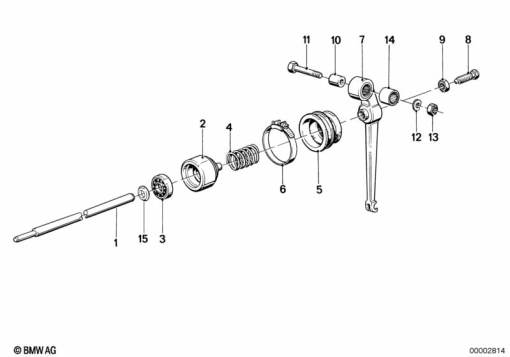

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 13 1 241 844 | 0.18 | 1 | |
| 1 | 23 13 1 464 167 | PISTON | 1 | |
| 2 | 23 13 1 464 167 | PISTON | 1 | |
| 3 | 07 11 9 984 020 | GROOVED BALL BEARING - 51100 | 1 | |
| 4 | 23 13 1 241 849 | SPRING | 1 | |
| 5 | 23 13 1 338 731 | 0.02 | 1 | |
| 6 | 23 13 1 241 872 | CLAMP - D=40 | 1 | |
| 7 | 23 13 1 338 488 | CLUTCH LEVER | 1 | |
| 8 | 23 13 1 241 848 | SCREW | 1 | |
| 9 | 07 11 9 904 948 | HEX NUT - M8-05-ZNNIV SI | 1 | |
| 10 | 23 13 1 241 833 | BUSH | 1 | |
| 11 | 07 11 9 902 998 | HEX BOLT - M6X35-8.8-ZNS3 | 1 | |
| 11 | 07 11 9 901 189 | bolt 6x1.0x35 | 1 | |
| 12 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 12 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 12 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 12 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 13 | 07 11 9 921 054 | HEX NUT - M6-04-2-ZN | 1 | |
| 14 | 23 13 1 238 422 | NEEDLE SLEEVE - 12X18X16 | 1 | |
| 15 | 23 13 1 239 891 | BUSH | 1 |
