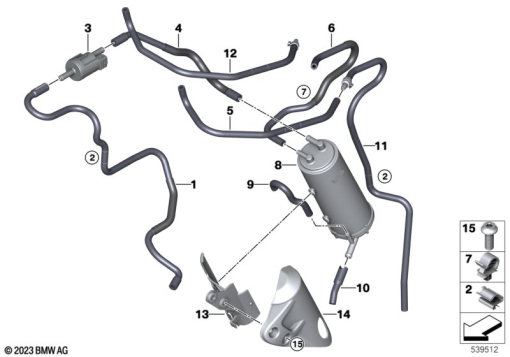

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 13 7 106 125 | HOSE - TEV-ZYL.KOPF | - | |
16135B41080 | HOSE - TEV-ZYL.KOPFAlternative for position 1 | - | ||
| 2 | 11 15 7 545 772 | HOLDER | - | |
| 3 | 16 13 8 567 224 | FUEL TANK BREATHER VALVE | - | |
| 4 | 16 13 7 106 124 | HOSE - AKF-TEV | - | |
16135B41079 | HOSE - AKF-TEVAlternative for position 4 | - | ||
| 5 | 16 13 7 106 123 | HOSE PIPE - TANK-AKF | - | |
16135B41078 | HOSE LINE - TANK-AKFAlternative for position 5 | - | ||
| 6 | 16 13 7 109 407 | HOSE - TANK-AKF II | - | |
16135B41081 | HOSE - TANK-AKF IIAlternative for position 6 | - | ||
| 7 | 12 52 1 741 316 | TUBING SUPPORT | - | |
| 8 | 16 13 7 108 518 | ACTIVATED CHARCOAL FILTER | - | |
| 9 | 16 13 7 106 128 | HOSE | - | |
| 10 | 16 13 7 106 127 | HOSE | - | |
| 11 | 16 13 7 109 408 | HOSE PIPE | - | |
| 12 | 16 13 7 106 126 | HOSE | - | |
| 13 | 16 13 7 914 798 | BRACKET ACTIVATED CARBON CONTAINER | - | |
| 14 | 16 13 7 106 129 | TRIM | - | |
| 15 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | - |
