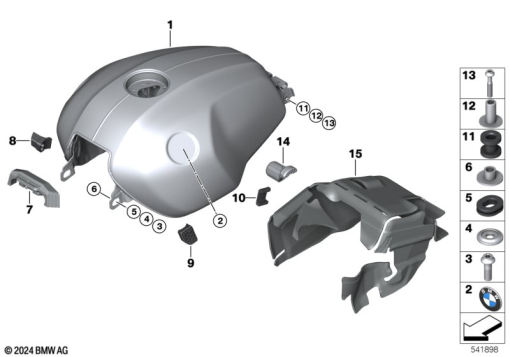

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16115A66E09 | FUEL TANK - SAN REMO GREEN | 1 | |
| 1 | 16115A66E08 | FUEL TANK - BLACKSTORM MET. | 1 | |
| 1 | 77 34 7 108 960 | FUEL TANK, ALUMINUM | 1 | |
| 1 | 16115B4EDF2 | FUEL TANK, ALUMINUM | 1 | |
| 2 | 51 14 7 721 223 | BADGE - D=70 | 1 | |
| 3 | 07 12 9 907 382 | FILLISTER-HEAD SCREW - M8X25-8.8-ZNNIV | 1 | |
| 4 | 16115A7EC89 | WASHER | 1 | |
| 5 | 16115A64427 | RUBBER DECOUPLER - M8 | 1 | |
| 6 | 07145A64429 | BUSHING - M8 | 1 | |
| 7 | 16 11 7 914 512 | SUPPORT, TANK | 1 | |
| 8 | 16115A64418 | SUPPORT, TANK, RIGHT FRONT | 1 | |
| 9 | 16115A64417 | SUPPORT, FUEL TANK, LEFT FRONT | 1 | |
| 10 | 16115A64430 | RUBBER ELEMENT | 1 | |
| 11 | 16 11 2 309 211 | RUBBER MOUNTING | 1 | |
| 12 | 16 11 7 921 849 | BUSHING | 1 | |
| 13 | 07 12 9 907 378 | ISA SCREW - M8X45-8.8-ZNNIV | 1 | |
| 14 | 16115A64421 | SUPPORT, TANK, REAR | 1 | |
| 15 | 16 11 1 739 337 | SET: SET OF HEAT SHIELD SHEETS | 1 |
