R12 nineT 22 (KR1) | Frame, Fairing, Cases
SIDE STAND

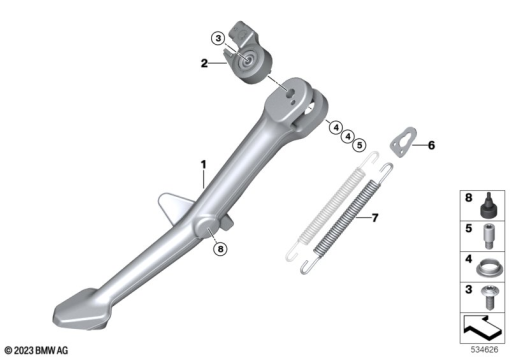

Diagram #46_2595 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46535A9CB69 | SIDE STAND | 1 | |
| 2 | 61 31 8 388 642 | SWITCH, KICKSTAND | 1 | |
| 3 | 61 31 8 547 664 | BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK | 1 | |
| 4 | 46 53 7 679 105 | COLLAR BUSH | 1 | |
| 5 | 46 53 8 356 967 | SIDE-SUPPORT SCREW - M10X1-ZNNIV-MK | 1 | |
| 6 | 46 53 7 653 538 | METAL BRACKET | 1 | |
| 7 | 46 53 2 345 275 | TENSION SPRING | 1 | |
| 8 | 46 52 2 332 218 | BUMP STOP - H=10 | 1 |
