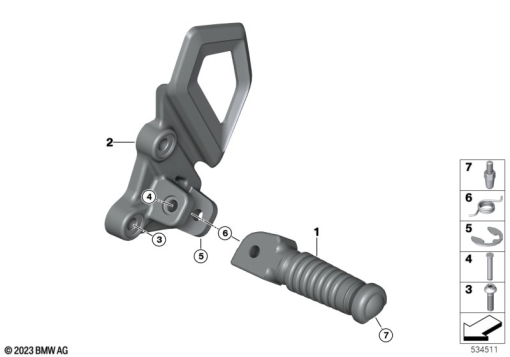

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77255A65BA1 | DRIVER FOOTREST LEFT - SHADOW | - | |
77255A65BA2 | RIDER FOOTREST, RIGHT - SHADOWAlternative for position 1 | - | ||
| 2 | 46 71 7 107 750 | FOOTREST PLATE RIGHT - SHADOW | - | |
46 71 7 107 751 | FOOTREST PLATE LEFT - SHADOWAlternative for position 2 | - | ||
| 3 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | - | |
| 4 | 46 71 7 680 530 | PIN - L=42MM | - | |
| 5 | 07 11 9 909 941 | CIRCLIP | - | |
| 6 | 46 71 8 562 448 | RETAINER SPRING | - | |
| 7 | 46 71 2 330 765 | STOPPER - L=32MM MK | - |
