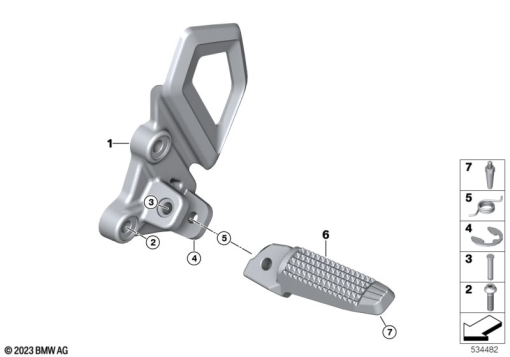

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 7 107 745 | FOOT PEG PLATE LEFT | - | |
46 71 7 107 744 | FOOT PEG PLATE RIGHTAlternative for position 1 | - | ||
| 2 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | - | |
| 3 | 46 71 7 680 530 | PIN - L=42MM | - | |
| 4 | 07 11 9 909 941 | CIRCLIP | - | |
| 5 | 46 71 8 562 448 | RETAINER SPRING | - | |
| 6 | 46 71 7 660 171 | FOOTREST, LEFT | - | |
46 71 7 660 172 | FOOTREST, RIGHTAlternative for position 6 | - | ||
| 7 | 46 71 8 563 744 | STOPPER | - |
