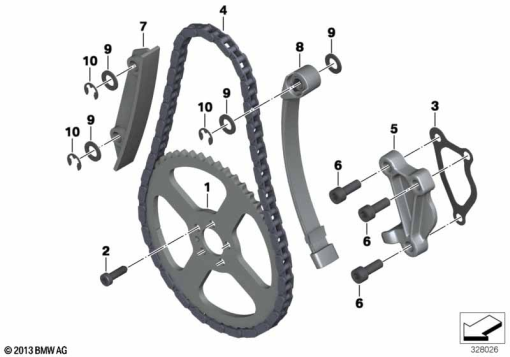

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 7 668 125 | SPROCKET | 1 | |
| 2 | 07 12 9 904 494 | ISA SCREW - M5X16-10.9-PHR | 1 | |
| 3 | 11 31 7 674 453 | GASKET | 1 | |
| 4 | 11 31 7 694 426 | TIMING CHAIN | 1 | |
| 5 | 11 31 7 710 397 | ABUTMENT | 1 | |
| 6 | 07 12 9 905 118 | ISA SCREW - M6X25 | 1 | |
| 7 | 11 31 1 341 293 | GUIDE RAIL | 1 | |
| 8 | 11 31 7 688 154 | CHAIN TENSIONER | 1 | |
| 9 | 11 31 1 460 923 | SHIM - 8,2X14X1,2 | 1 | |
| 10 | 07 11 9 932 841 | CIRCLIP - D=6MM | 1 |
