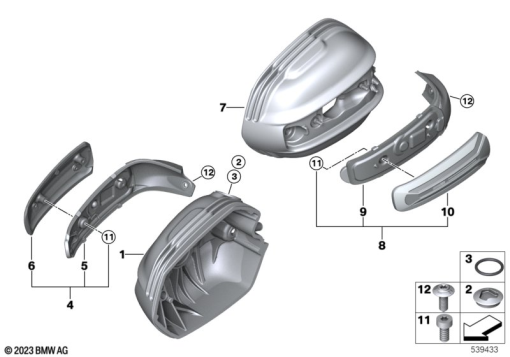

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 7 108 808 | ROCKER BOX COVER RIGHT - CLASSIC | - | |
11 12 7 108 806 | ROCKER BOX COVER RIGHT - SHADOWAlternative for position 1 | - | ||
| 2 | 11 12 8 526 288 | OIL COVER LID | - | |
| - | 07 11 9 904 950 | O-RING - 27X3,2 | - | |
| 2 | 11 12 1 025 211 | OIL FILLER PLUG - SHADOW | - | |
| 3 | 07 11 9 904 950 | O-RING - 27X3,2 | - | |
| 4 | 11 12 7 108 760 | IGNITION COIL COVER, RIGHT - CLASSIC | - | |
11 12 7 108 758 | IGNITION COIL COVER, RIGHT - SHADOWAlternative for position 4 | - | ||
| 5 | 11 12 8 103 330 | SUPPORT, IGNITION COIL COVER, RIGHT - RIGHT | - | |
| 6 | 11 12 8 103 334 | TRIM, IGNITION COIL COVER, RIGHT - CLASSIC | - | |
11 12 8 103 332 | TRIM, IGNITION COIL COVER, RIGHT - SHADOWAlternative for position 6 | - | ||
| 7 | 11 12 7 108 807 | ROCKER BOX COVER LEFT - CLASSIC | - | |
11 12 7 108 805 | ROCKER BOX COVER LEFT - SHADOWAlternative for position 7 | - | ||
| 8 | 11 12 7 108 759 | IGNITION COIL COVER, LEFT - CLASSIC | - | |
11 12 7 108 757 | IGNITION COIL COVER, LEFT - SHADOWAlternative for position 8 | - | ||
| 9 | 11 12 8 103 329 | SUPPORT, IGNITION COIL COVER, LEFT - LEFT | - | |
| 10 | 11 12 8 103 333 | TRIM, IGNITION COIL COVER, LEFT - CLASSIC | - | |
11 12 8 103 331 | TRIM, IGNITION COIL COVER, LEFT - SHADOWAlternative for position 10 | - | ||
| 11 | 07 12 9 904 491 | ISA SCREW - M5X10 | - | |
| 12 | 46 63 8 534 943 | BODY SCREW WITHOUT SHOULDER - M5X14 MK | - |
