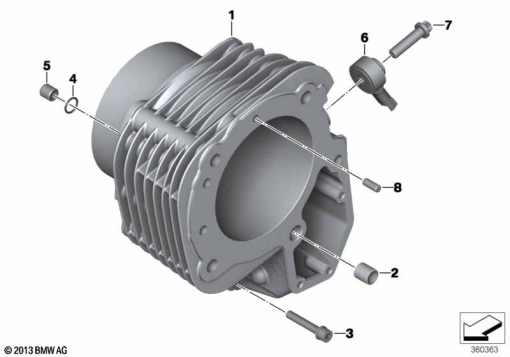

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 1 025 093 | CYLINDER LEFT - BLACK | - | |
11 11 1 025 080 | CYLINDER RIGHT - BLACKAlternative for position 1 | - | ||
| 2 | 11 12 1 726 241 | DOWEL - D=12,5MM | - | |
| 3 | 07 12 9 905 538 | ISA SCREW WITH WASHER - M6X35-ZNNIV SI | - | |
| 4 | 11 11 1 342 242 | O-RING - 10,5X1,5 | - | |
| 5 | 11 12 1 726 238 | DOWEL - D=10,5MM | - | |
| 6 | 13 62 9 845 632 | PING SENSOR | - | |
| 7 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | - | |
| 8 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | - |
