Parts List (9)

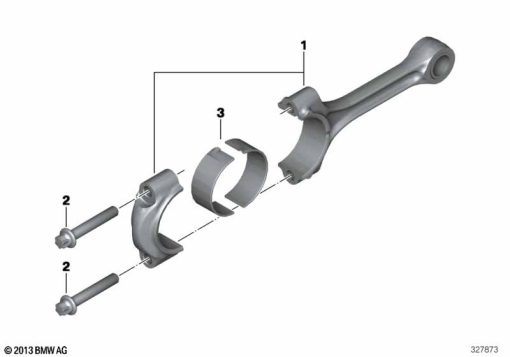

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 24 7 679 317 | CONNECTING ROD - 2XBLUE/KL.1 | 1 | |
| 1 | 11 24 7 679 318 | CONNECTING ROD - 3XWHITE/KL.2 | 1 | |
| 1 | 11 24 7 679 319 | CONNECTING ROD - 3XYELLOW/KL.3 | 1 | |
| – | 11 24 7 684 644 | CONNECTING ROD BOLT - M10X1 | 1 | |
| 2 | 11 24 7 684 644 | CONNECTING ROD BOLT - M10X1 | 1 | |
| 3 | 11 24 7 700 603 | BEARING SHELL, COVER SIDE, RED | 1 | |
| 3 | 11 24 7 700 604 | BEARING SHELL, ROD SIDE, BLUE | 1 | |
| 3 | 11 24 7 700 605 | BEARING SHELL, COVER SIDE, RED - +0,25 | 1 | |
| 3 | 11 24 7 700 606 | BEARING SHELL, ROD SIDE, BLUE - +0,25 | 1 |
