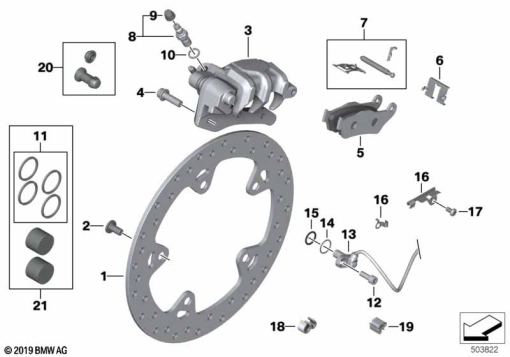

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 7 664 102 | BRAKE DISK | - | |
| 5 | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| - | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| - | 34 21 8 865 984 | BRAKE CALIPER REAR | - | |
| - | 46 71 7 726 491 | TRAPEZOIDAL SCREW - M8X25-10.9-SI | - | |
| 5 | 34 21 2 335 465 | SET: SET, BRAKE PADS, ORGANIC | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 5 | - | ||
| 6 | 34 21 7 663 749 | SUPPORT PLATE | - | |
| 7 | 34 21 7 671 876 | MOUNTING PARTS SET | - | |
| 8 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 9 | 34 21 2 314 001 | 34 21 2 314 001 | - | |
| 10 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 11 | 34 21 7 674 607 | SET OF BRAKE CALIPER PISTON SEALS - D=28MM | - | |
| 12 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | - | |
| 13 | 34 52 1 690 046 | WHEEL SPEED SENSOR | - | |
| 14 | 33 11 7 707 796 | CENTERING RING | - | |
| 15 | 34 52 7 708 523 | O-RING - 15X2 | - | |
| 16 | 34 52 8 527 860 | SENSOR CABLE BRACKET | - | |
| 17 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | - | |
| 18 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | - | |
| 19 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | - | |
| 20 | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | - | |
| 21 | 34 21 8 353 751 | SET: SET PISTONS WITH GASKET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
