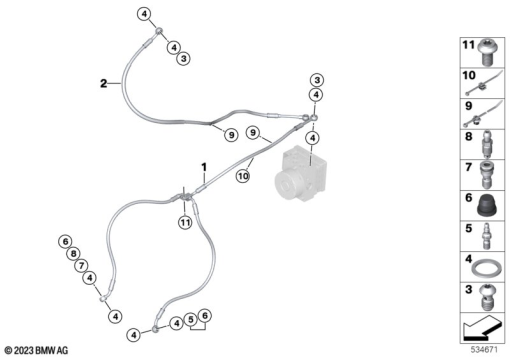

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 7 108 251 | BRAKE LINE BRAKE CIRCUIT FRONT | - | |
| 2 | 34 32 7 108 252 | BRAKE LINE CONTROL CIRCUIT FRONT | - | |
| 3 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | - | |
| 4 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 5 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 6 | 34 21 2 314 001 | 34 21 2 314 001 | 2 | |
| 7 | 34 32 8 549 328 | VENTILATION BOLT | - | |
| 8 | 34 11 8 520 872 | VENT SCREW | - | |
| 9 | 61 13 6 914 992 | CABLE STRAP WITH BRACKET - Ø=7,9 / L=200 | - | |
| 10 | 61 13 6 918 644 | CABLE STRAP WITH BRACKET - L=200MM | - | |
| 11 | 07 12 9 907 404 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV | - |
