SERVICE OF TELESCOPIC FORKS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #02_0117 | 11 parts

100%

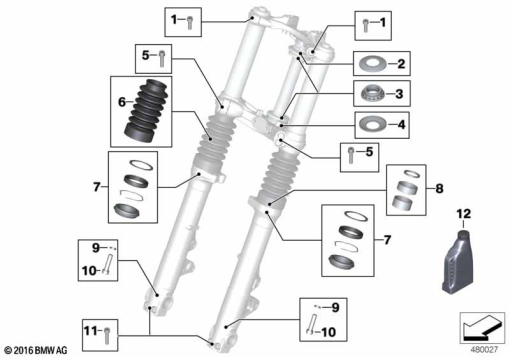

R nineT Racer (K32) SERVICE OF TELESCOPIC FORKS exploded view parts diagram

Parts List (11)

#	Part Number	Description	Qty
1	07 12 9 907 380	ISA SCREW - M8X35-8.8-ZNNIV	-
2	31 42 8 544 702	BEARING COVER	-
3	31 42 7 718 392	BEARING	-
4	31 42 8 544 703	BEARING COVER	-
5	07 12 9 907 380	ISA SCREW - M8X35-8.8-ZNNIV	-
7	31 42 8 559 581	SET: SET OF GASKETS	-
8	31 42 8 559 582	SET: SET OF BUSHES	-
9	31 42 2 312 710	GASKET	-
10	31 42 7 696 053	FILLISTER-HEAD SCREW - M8X18	-
11	07 12 9 907 380	ISA SCREW - M8X35-8.8-ZNNIV	-
12	83 19 2 470 714	TELESCOPIC FORK OIL TYPE 4 - 1000ML	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
