R nineT Racer (K32) | Service Items

BRAKE SERVICE

Diagram #02_0149 | 38 parts

100%

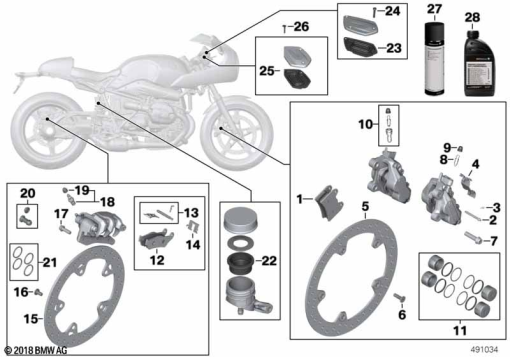

R nineT Racer (K32) BRAKE SERVICE exploded view parts diagram

Parts List (38)

#Part NumberDescriptionQty
1
34 11 7 696 593
SET OF BRAKE PADS FRONT1
1
83 12 2 296 187
Brake Pad Paste - 5 ml1
4
34 11 7 696 595
0.041
2
34 11 7 696 595
0.041
3
34 11 7 696 597
CLIP1
4
34 11 7 696 596
SPRING, BRAKE CALIPER1
5
34 11 8 526 575
BRAKE ROTOR WITH RIVET - D=320-4,5MM1
10
34 11 7 700 989
COUNTERSUNK SCREW - M8X27-10.9 MK1
6
34 11 7 700 989
COUNTERSUNK SCREW - M8X27-10.9 MK1
7
46 51 7 726 490
TRAPEZOIDAL SCREW - M10X1.25X401
8
34 11 7 696 594
VENT SCREW1
9
34 21 2 314 001
34 21 2 314 0012
10
34 32 8 559 191
SCREW PLUG WITH VENTILATION1
11
34 11 8 353 743
SET: SET PISTONS WITH GASKET1
12
34 21 2 335 465
SET: SET, BRAKE PADS, ORGANIC1
12
83 12 2 296 187
Brake Pad Paste - 5 ml1
13
34 21 7 671 876
MOUNTING PARTS SET1
14
34 21 7 663 749
SUPPORT PLATE1
15
34 21 7 664 102
BRAKE DISK1
5
33 17 7 709 205
TORX SCREW - M8X15,5-MK-ZNS31
16
33 17 7 709 205
TORX SCREW - M8X15,5-MK-ZNS31
17
46 71 7 726 491
TRAPEZOIDAL SCREW - M8X25-10.9-SI1
18
34 32 8 559 191
SCREW PLUG WITH VENTILATION1
19
34 21 2 314 001
34 21 2 314 0011
20
34 21 2 330 312
REPAIR KIT, RUBBER COVER1
21
34 21 7 674 607
SET OF BRAKE CALIPER PISTON SEALS - D=28MM1
22
34 31 2 314 092
RUBBER COVER1
23
32 72 8 568 552
SET: SET OF CAPS, FLUID RESERVOIR, CLUTCH1
24
32 72 8 559 863
COUNTERSUNK SCREW - M4X201
25
32 72 8 558 856
RUBBER BOOT1
26
32 72 8 559 863
COUNTERSUNK SCREW - M4X201
27
83195A23100
BRAKE CLEANER, ACETONE-FREE - 500ML1
27
83195A260A8
BRAKE CLEANER, ACETONE-FREE - 500ML1
28
83 13 2 445 461
BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 08/19)1
28
83105A87362
BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L1
28
83135A824F1
BRAKE FLUID DOT4, LOW-VISCOSITY EU - 60L1
28
83 13 2 467 961
BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 08/19)1
28
83105A87361
BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML1
