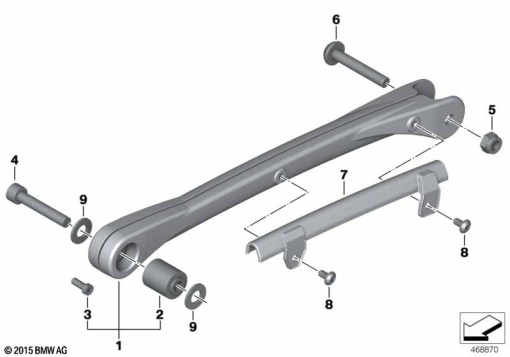

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 17 7 685 093 | BLACK ROD - L=380MM | - | |
| 2 | 33 35 8 382 788 | RUBBER MOUNTING | - | |
| 3 | 07 12 9 905 261 | ISA SCREW - M6X16-8.8-MK | - | |
| 4 | 07 12 9 907 073 | ISA SCREW - M10X55 | - | |
| 5 | 77 14 9 908 443 | HEX NUT - M10-10-ZNNIV SI | - | |
| 6 | 33 35 8 533 524 | FILLISTER-HEAD SCREW - M10X60-U0-10.9 | - | |
| 7 | 34 32 7 675 056 | COVER | - | |
| 8 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 9 | 33 17 7 655 783 | STOP DISK | - |
