R nineT Racer (K32) | Rear Axle & Suspension

SPRING STRUT, REAR

Diagram #33_2050 | 3 parts

100%

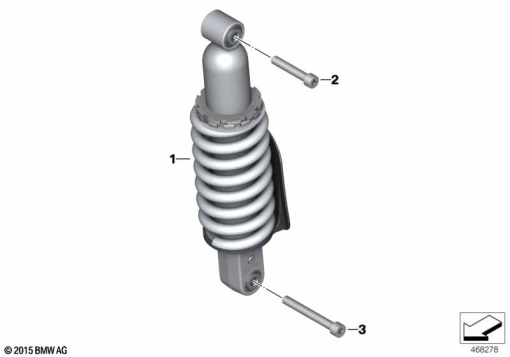

R nineT Racer (K32) SPRING STRUT, REAR exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
33 54 8 558 528
SPRING STRUT, REAR1
2
33 53 8 545 139
TORX SCREW - M10X1,25X55 MK1
3
07 12 9 907 435
ISA SCREW - M10X80-10.9-MK1
