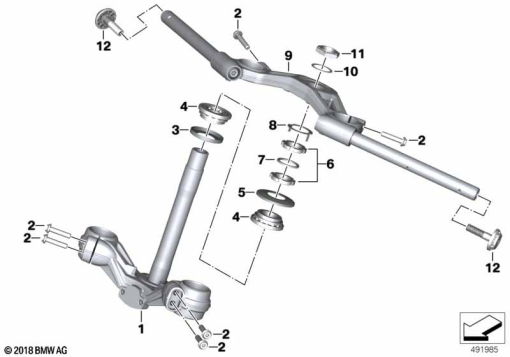

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 558 481 | LOWER FORK CROSS BRACE | - | |
31 42 7 718 392 | BEARINGAlternative for position 1 | - | ||
| 2 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | - | |
| 3 | 31 42 8 544 703 | BEARING COVER | - | |
| 4 | 31 42 7 718 392 | BEARING | - | |
| 5 | 31 42 8 544 702 | BEARING COVER | - | |
| 6 | 31 42 7 718 388 | GROOVE NUT | - | |
| 7 | 31 42 8 532 384 | RUBBER WASHER | - | |
| 8 | 31 42 8 532 385 | SECURING PLATE | - | |
| 9 | 31 42 8 558 762 | UPPER FORK CROSS BRACE | - | |
| 10 | 31 42 7 718 387 | WASHER | - | |
| 11 | 31 42 8 551 835 | 0.02 | - | |
| 12 | 32 71 8 558 526 | COVERING CAP | - |
