R nineT Racer (K32) | Front Suspension
RISER PIPE/ABSORBER

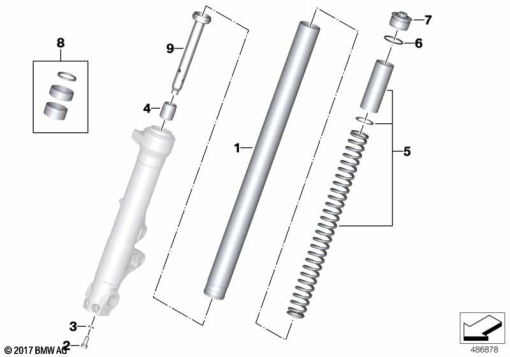

Diagram #31_1303 | 9 parts | 1 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 562 008 | STANCHION | 1 | |
| 2 | 31 42 7 696 053 | FILLISTER-HEAD SCREW - M8X18 | 1 | |
| 3 | 31 42 2 312 710 | GASKET | 1 | |
| 4 | 31 42 7 702 843 | STOPPER BOTTOM | 1 | |
| 5 | 31 42 8 559 579 | SET: SPRING SET | 1 | |
| 6 | 31 42 7 724 466 | O-RING | 1 | |
| 7 | 31 42 7 718 130 | COVERING CAP - M39X1.0 | 1 | |
| 8 | 31 42 8 559 582 | SET: SET OF BUSHES | 1 | |
| 9 | 31 42 8 405 836 | DAMPER PIPE | 1 |
