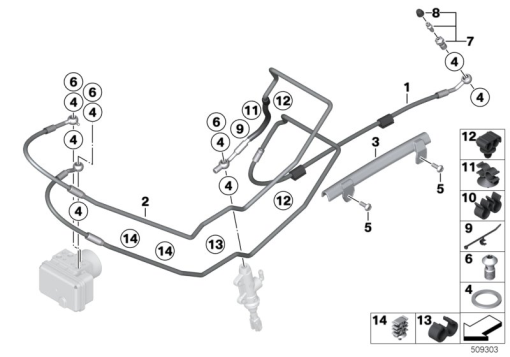

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 8 533 906 | BRAKE CIRCUIT PIPE, REAR | - | |
| 2 | 34 32 8 558 768 | BRAKE PIPE CONTROL CIRCUIT, REAR | - | |
| 3 | 34 32 7 675 056 | COVER | - | |
| 4 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 5 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 6 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | - | |
| 7 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 8 | 34 21 2 314 001 | 34 21 2 314 001 | - | |
| 9 | 34 31 7 683 767 | CABLE STRAP WITH BRACKET | - | |
| 10 | 13 90 1 720 201 | HOSE CLAMP | - | |
| 11 | 17 12 7 609 160 | PIPE CLIP | - | |
| 12 | 34 32 7 727 425 | BRACKET, BRAKE PIPE, DOUBLE | - | |
| 13 | 34 32 7 675 533 | SPACER, BRAKE PIPE | - |
