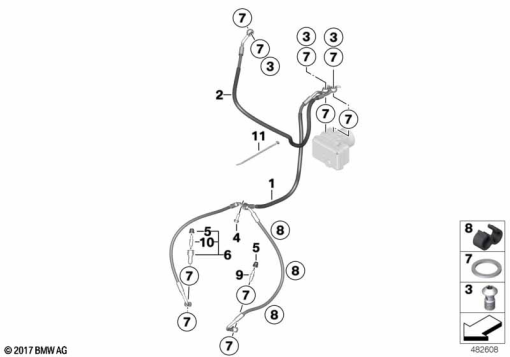

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 8 551 585 | BRAKE LINE, FRONT BRAKE CIRCUIT | - | |
| 2 | 34 32 8 558 767 | BRAKE LINE FOR FRONT BRAKE CIRCUIT | - | |
| 3 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | - | |
| 4 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 5 | 34 21 2 314 001 | 34 21 2 314 001 | 2 | |
| 6 | 34 32 8 549 328 | VENTILATION BOLT | - | |
| 7 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 8 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | - | |
| 9 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 10 | 34 11 8 520 872 | VENT SCREW | - | |
| 11 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - |
