Parts List (16)

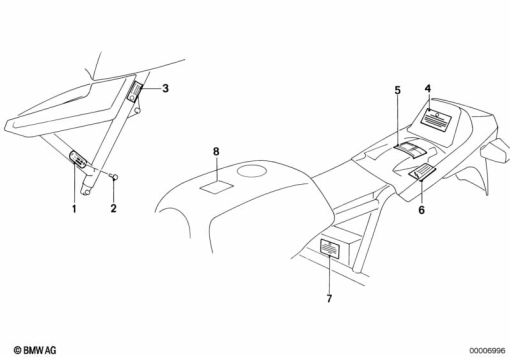

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 14 1 454 947 | TYPE PLATE | - | |
51 14 1 457 105 | TYPE PLATE - 450KGAlternative for position 1 | - | ||
| 3 | 51 14 1 461 078 | LABEL "EXHAUST EMISSION" - USA 86 | - | |
51 14 1 461 048 | LABEL "EXHAUST EMISSION" - CALIFORNIA 86Alternative for position 3 | - | ||
51 14 1 461 266 | LABEL "EXHAUST EMISSION" - CALIFORNIA 87Alternative for position 3 | - | ||
51 14 1 461 872 | LABEL "EXHAUST EMISSION" - CALIFORNIA 88Alternative for position 3 | - | ||
| 4 | 71 21 2 322 300 | HINWHITECHILD ZULADUNG SITZPLÄTZE | - | |
51 14 1 240 121 | LABEL "WARRANTY" - USAAlternative for position 4 | - | ||
51 14 2 121 174 | LABEL "ORIGINAL BMW TEILE"Alternative for position 4 | - | ||
| 5 | 51 14 1 454 895 | LABEL "TIRE PRESSURE" | - | |
| 6 | 71 21 2 122 014 | LABEL "TRANSISTORIZED IGNITION" | - | |
| 7 | 51 14 1 459 227 | LABEL "BATTERY" | - | |
51 14 1 459 226 | LABEL "BATTERY" - USAAlternative for position 7 | - | ||
| 8 | 51 14 1 453 617 | LABEL - HELM | - | |
71 21 1 341 612 | LABEL "PREMIUM FUEL UNLEADED" - DEUTSCH/ENGL.Alternative for position 8 | - | ||
71 21 2 122 056 | LABEL "PREMIUM FUEL UNLEADED" - ENGLISCHAlternative for position 8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
