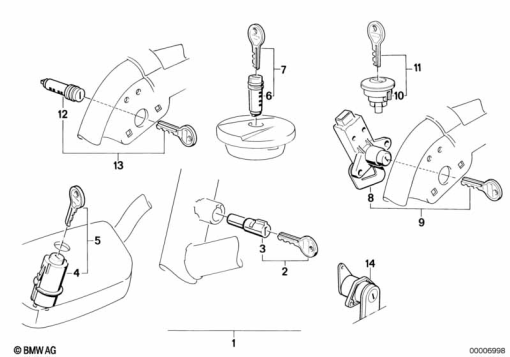

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 1 455 679 | SET OF LOCKS | - | |
51 25 2 308 330 | SET OF LOCKSAlternative for position 1 | - | ||
| 2 | 51 25 1 453 651 | LOCK | - | |
| 3 | 51 25 1 243 499 | STEERING LOCK - CODE | - | |
| 4 | 51 25 1 455 411 | IGNITION/LIGHT SWITCH - CODE | - | |
| 5 | 51 25 1 455 412 | IGNITION/LIGHT SWITCH | - | |
ELA55412 | IGN. SWITCH BLACK PLUGAlternative for position 5 | - | ||
| 6 | 51 25 1 455 108 | LOCK (WITH KEY CODE) | - | |
| 7 | 51 25 1 455 109 | LOCK CYLINDER WITH KEY | - | |
| 8 | 51 25 1 453 655 | DUAL SEAT LOCK WITH CODE | - | |
| 9 | 51 25 1 453 653 | DUAL SEAT LOCK | - | |
| 12 | 51 25 1 455 108 | LOCK (WITH KEY CODE) | - | |
| 13 | 51 25 1 455 109 | LOCK CYLINDER WITH KEY | - | |
| 14 | 51 25 2 308 125 | HOUSING | - | |
| - | 51 25 1 455 108 | LOCK (WITH KEY CODE) | - | |
| - | 51 25 1 455 109 | LOCK CYLINDER WITH KEY | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
