K75C (K569) | Transmission
TRANSMISSION HOUS./MOUNT. PARTS/GASKETS

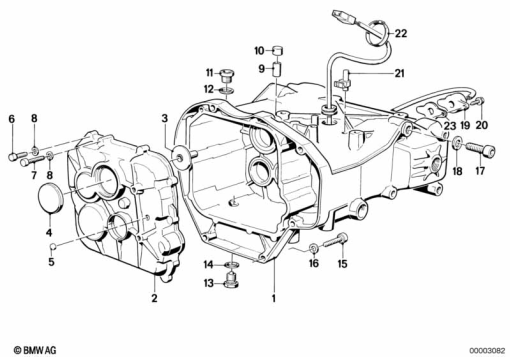

Diagram #23_1154 | 31 parts | 5 available in shop
100%
Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 11 1 451 004 | TRANSMISSION HOUSING | 1 | |
| 2 | 23 11 1 451 009 | HOUSING COVER | 1 | |
| 3 | 23 11 1 451 014 | OIL GUIDE | 1 | |
| 4 | 23 11 1 451 017 | SEALING COVER | 1 | |
| 5 | 07 11 9 937 205 | COVER LID - D=8MM | 1 | |
| 6 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | 1 | |
| 7 | 07 11 9 919 936 | FILLISTER-HEAD SCREW - M6X40 | 1 | |
| 7 | 07 12 9 904 655 | ISA Screw | 1 | |
| 8 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 8 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 8 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 8 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 9 | 23 11 1 451 548 | SLEEVE (to 12/96) | 1 | |
| 9 | 33 75 8 544 490 | SLEEVE | 1 | |
| 9 | 33 75 8 544 490 | SLEEVE | 1 | |
| 10 | 23 11 1 451 549 | 23 11 1 451 549 | 1 | |
| 11 | 07 11 9 905 428 | SCREW PLUG - M18X1,5-ZNNIV | 1 | |
| 11 | 07 11 9 905 428M | DRAIN PLUG W/ MAGNET | 1 | |
| 12 | 07 11 9 963 300 | GASKET RING - A18X22-AL | 1 | |
| 13 | 11 13 1 744 329 | SCREW PLUG, MAGNETIC - M14X1,5 | 1 | |
| 14 | 07 11 9 963 200 | GASKET RING - A14X18-AL | 1 | |
| 15 | 07 11 9 901 033 | FILLISTER-HEAD SCREW - M8X45-8.8 | 1 | |
| 16 | 07 11 9 904 826 | Washer | 1 | |
| 16 | 07 11 9 931 697 | WASHER - 8,4 | 1 | |
| 17 | 07 12 9 904 159 | FILLISTER HEAD SCREW - M10X35-8.8-ZNS3 | 1 | |
| 18 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | 1 | |
| 19 | 61 31 1 459 593 | TRANSMISSION SWITCH | 1 | |
| 20 | 23 00 1 459 653 | HEX BOLT - M4X12 | 1 | |
| 21 | 61 31 1 459 043 | CLAMP | 1 | |
| 22 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 23 | 23 11 1 464 014 | GASKET | 1 |
