K75C (K569) | Transmission

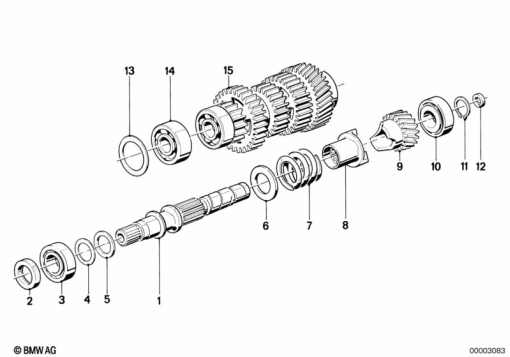

5 SPEED TRANSMISSION-DRIVE SHAFT
Diagram #23_1155 | 26 parts | 5 available in shop
100%
Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 21 1 457 061 | DRIVE SHAFT | 1 | |
| 2 | 23 12 1 451 020 | SHAFT SEAL - 22X35X7 | 1 | |
| 3 | 23 12 1 451 044 | TAPERED ROLLER BEARING - 45,24X16,64X22 | 1 | |
| 4 | 23 21 1 451 141 | SHIM - 22X30X0,3 | 1 | |
| 4 | 23 21 1 451 142 | SHIM - 22X30X0,4 | 1 | |
| 4 | 23 21 1 451 143 | SHIM - 22X30X0,5 | 1 | |
| 5 | 23 31 1 451 047 | SHIM - 22X30X1,5 | 1 | |
| 5 | 23 31 1 451 048 | SHIM - 22X30X1,48 | 1 | |
| 5 | 23 31 1 451 049 | SHIM - 22X30X1,46 | 1 | |
| 5 | 23 31 1 451 050 | SHIM - 22X30X1,44 | 1 | |
| 5 | 23 31 1 451 051 | SHIM - 22X30X1,42 | 1 | |
| 6 | 23 21 1 451 036 | WASHER | 1 | |
| 7 | 23 21 1 451 037 | COMPRESSION SPRING | 1 | |
| 8 | 23 21 1 451 038 | THRUST ADAPTER | 1 | |
| 9 | 23 21 1 451 039 | GEAR WHEEL | 1 | |
| 10 | 23 12 1 451 040 | TAPERED ROLLER BEARING - 45X19,05X15,5 | 1 | |
| 11 | 23 21 1 451 097 | LOCK RING - A19X1,5 | 1 | |
| 12 | 23 21 1 451 061 | SHAFT SEAL - 9X15X4 | 1 | |
| 13 | 23 11 1 341 431 | SHIM - 37X47X0,35 | 1 | |
| 13 | 23 11 1 341 432 | SHIM - 37X47X0,45 | 1 | |
| 13 | 23 11 1 341 433 | SHIM - 37X47X0,55 | 1 | |
| 13 | 23 11 1 451 138 | SHIM - 37X47X0,30 | 1 | |
| 13 | 23 11 1 451 139 | SHIM - 37X47X0,40 | 1 | |
| 13 | 23 11 1 451 140 | SHIM - 37X47X0,50 | 1 | |
| 14 | 23 12 1 451 063 | GROOVED BALL BEARING - 17X47X14 | 1 | |
| 15 | 23 21 1 464 358 | INTERMEDIATE SHAFT | 1 |
